APPLICATION

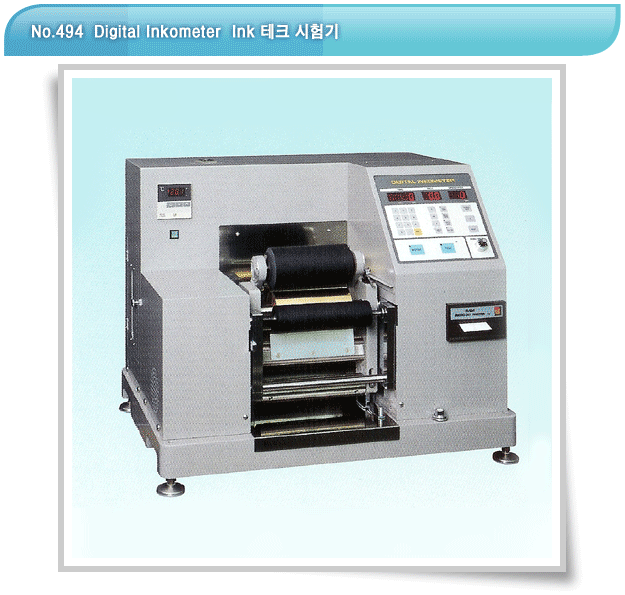

Tack of ink needs to be controlled when overlapped printing with ink. This tester evaluates such dynamic tack.
SPECIFICATIONS
| Tack |
0−40
|
| Metal roll speed |
100−3,000rpm push-button and variable
|
| Digital panel meter |
Selection & display of revolutions & tack
|
| Options |
Recorder, Printer, Solvent drip
|
| Testing method |
JIS K 5701
|
| Electrical |
AC100V, 1-P, 15A
(Other voltage also possible)
|
| Dimensions |
65(W)×50(D)×55(H)cm
|
| Net weight |
Approx. 130kg
|
|
